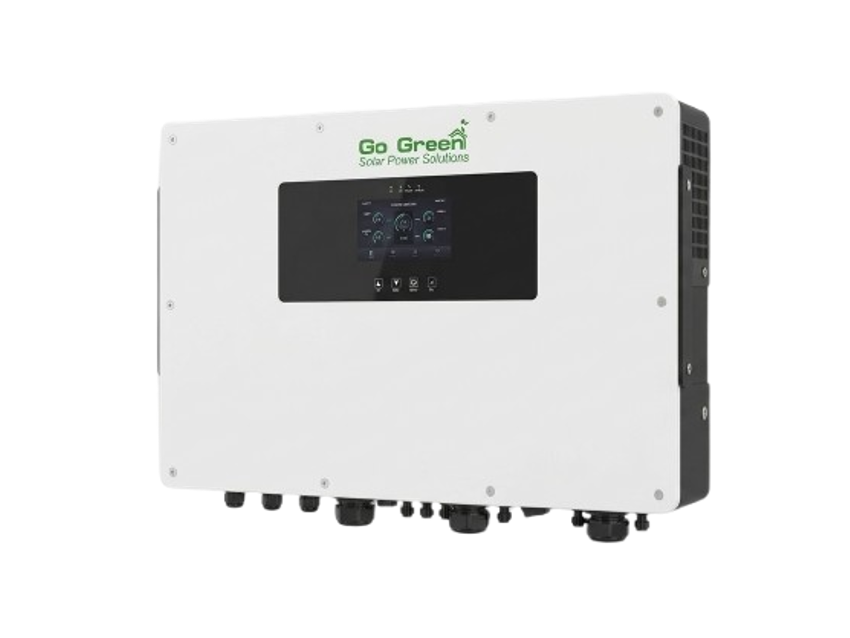

GGIV 3PHV-60kW Three Phase Hybrid Inverter
High Voltage Triple Phase Hybrid Inverter with intelligent time-based charging/discharging, Touch LCD & IP65 weather protection.
GGIV 3PHV-60kW High Voltage Three Phase Hybrid Inverter
High Voltage 3-Phase Hybrid Inverter supporting parallel connection, diesel generator integration, and smooth on/off-grid operation for reliable energy management.
| Category | Specification |
|---|---|
| Model | GGIV 3PHV-60KW |
| Battery Type | Lead-acid or Li-Ion |
| Battery Voltage Range (V) | 800-160 |
| Max. Charge/Discharge Current (A) | 60+60 |
| Max. Charge/Discharge Power (KW) | 62.5 |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Optional |
| Charging Strategy for Li-Ion Battery | Self-adaptation to BMS |
| Max. DC Input Power (KW) | 90 |
| PV Input Voltage (V) | 600 (150~900) |
| MPPT Range (V) | 150~850 |
| Full Load DC Voltage Range (V) | 260~650 |
| Start-up Voltage (V) | 180 |
| PV Input Current (A) | 5*36 |
| Max. PV Isc (A) | 5*55 |
| No. of MPPT Trackers | 5 |
| No. of Strings per MPPT Tracker | 2/2/2/2/2 |
| Rated AC Output Power (KW) | 60 |
| Max. AC Output Power (KW) | 66 |
| Peak Power (Off-grid) | 1.5 × rated power (10s) |
| AC Output Rated Current (A) | 90.9 / 87.0 |
| Max. AC Current (A) | 100 / 95.8 |
| Max. Continuous AC Passthrough (A) | 200 |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60Hz, 380/400Vac (Triple phase) |
| Grid Type | Three phase |
| Current Harmonic Distortion | THD < 3% (Linear load < 1.5%) |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | >99% |
| Protection | PV Input Lightning Protection, Anti-islanding Protection, PV String input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Short Protection |
| PV Arc Fault Detection | Optional |
| Output Over Voltage Protection | DC Type II / AC Type III |
| Operating Temperature Range (°C) | -45~60, >45 Derating |
| Cooling | Smart Cooling |
| Noise (dB) | ≤65 |
| Communication with BMS | CAN, RS485 |
| Weight (kg) | 109.3 |
| Dimensions (mm) | 976W × 665H × 371D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
The GGIV 3PHV-60kW High Voltage Triple Phase Hybrid Inverter delivers powerful and flexible energy management for commercial and industrial needs. Featuring intelligent time-based charging and discharging, it seamlessly integrates with diesel generators and supports energy storage from multiple sources. Its colorful Touch LCD and IP65 protection ensure user-friendly operation and durability in all environments. 100% unbalanced output support, it guarantees stable and efficient power delivery on and off the grid.
