| Category | Specification |
|---|---|

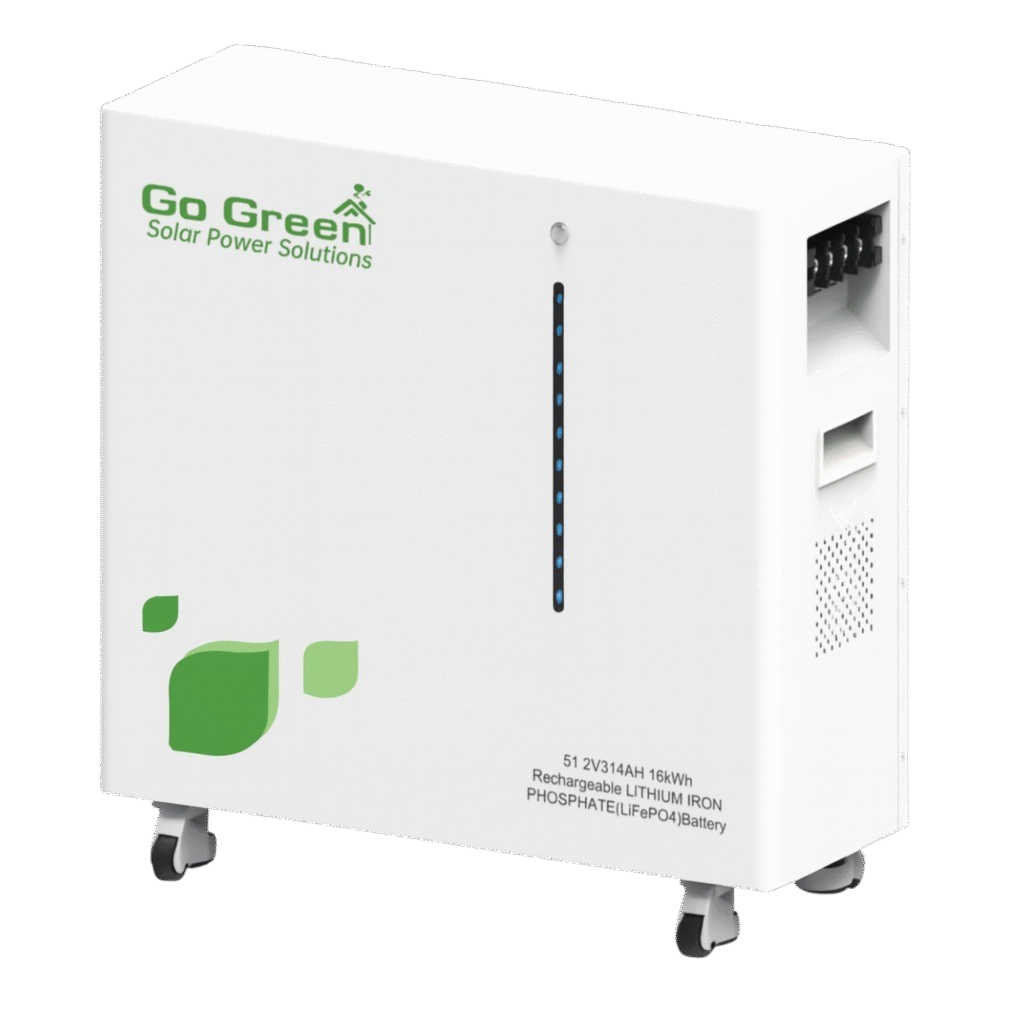

| Product Name | 51.2V 314Ah LiFePO₄ Battery Energy Storage System |
| Energy Capacity | 51.2V 314Ah |
| Cell Specifications | LiFePO₄ |
| Cell Configuration | 16S1P |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 43.2V |
| Optimum Charge Current | 100A |
| Max Continuous Discharge Current | 150A |
| Battery Management System | Overvoltage Protection, Undervoltage Protection, Over Temperature Protection, Over-current Protection, Short Circuit Protection, Balancing Function, Low Battery Latch Function |
| Operating Temperature | Charge: 0~60°C | Discharge: -20~60°C |
| Cycle Life | >6000 Cycles |
| Warranty | 5 Years |
| Dimensions (W × D × H) | 680 × 270 × 710 mm |
| Communication Interface | RS485, RS232, CAN, UART |
| Protection Level | IP55 |
| Dual Inline-Pin | Up to 6 Batteries |
The 51.2V 314Ah LiFePO₄ Battery Energy Storage System is engineered for high performance, safety, and reliability. It features advanced over-discharge and over-charge protection to maximize battery life. Built-in short circuit protection ensures safe operation under all conditions, while temperature protection safeguards against overheating. Designed for long-lasting energy storage, it’s ideal for both residential and commercial applications.
