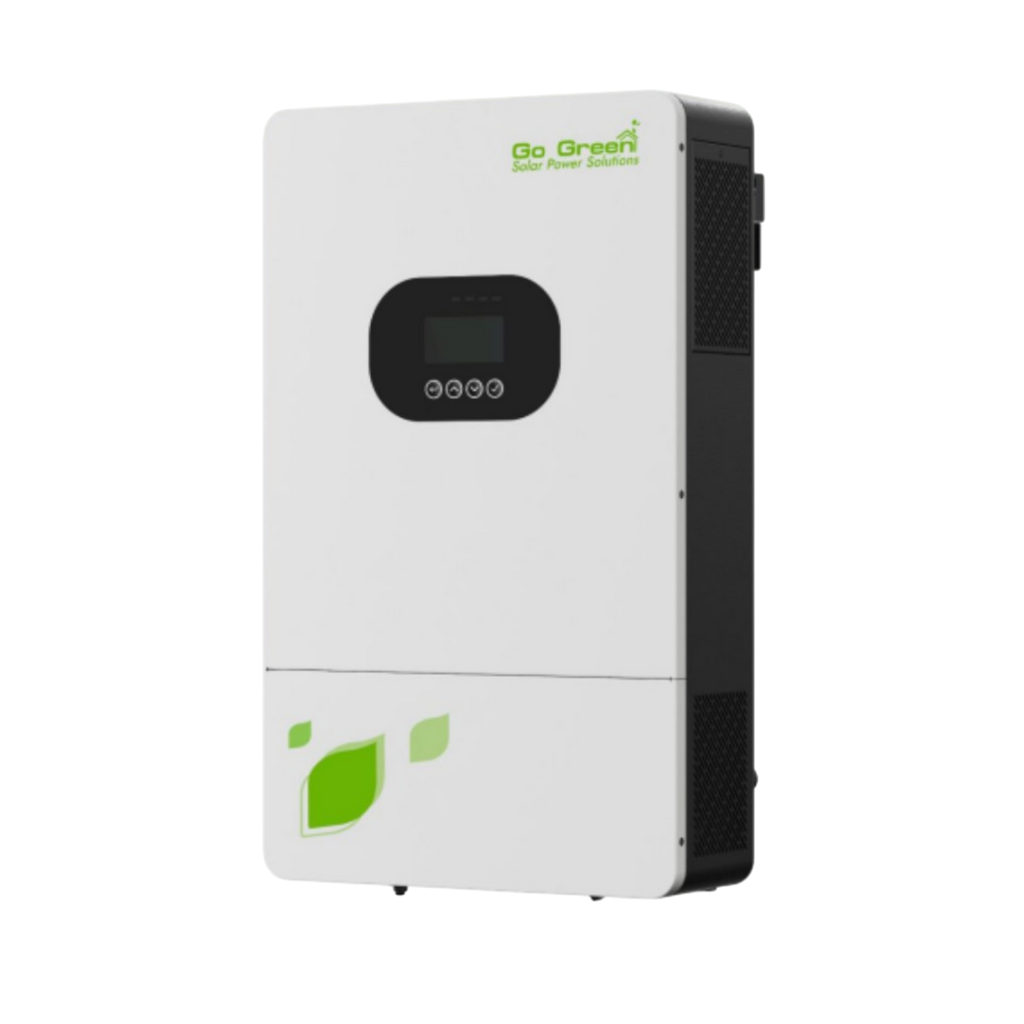

GGIV 4000 Single Phase MPPT Inverter
Intelligent, high-performance MPPT inverter for single-phase solar setups with smooth backup transition and smart energy control.
GGIV 4000 Single Phase
MPPT Inverter
The GGIV 4000 Single Phase MPPT Inverter delivers pure sine wave power with a wide 20–100V MPPT range. It supports lithium and lead-acid batteries, featuring lithium activation, LCD display, and a detachable dust cover.
Code
GGISSL-140W
Capacity
1738×434×263mm
Category
Solar Street Light
| Category | Specification |
|---|---|
| Product Name | GGIV 4000 Single Phase MPPT Inverter |
| AC Input - Rated Voltage | 208 / 220 / 230 / 240; L + N + PE |
| AC Input - Voltage Range | 90~280±3 (normal mode); 170~280±3 (UPS mode) |
| AC Input - Frequency | 50 / 60 Hz (Auto Adaptive) |
| AC Output - Rated Capacity | 4.0 kVA |
| AC Output - Peak Power | 7.2 kVA |
| AC Output - Voltage | 208 / 220 / 230 / 240 |
| AC Output - Power Factor | 1 |
| AC Output - Frequency | 50 / 60 Hz ±0.1% |
| AC Output - Switch Time | 10 ms (normal mode) / 10 ms (UPS mode) |
| AC Output - Waveform | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 60s @102%~110% load; 10s @110%~130% load; 3s @130%~150% load; 0.2s @>150% load |
| Max. Efficiency (Battery Mode) | 92.7% @24VDC |
| Parallel Quantity | NA |
| Solar Charger Type | MPPT |
| Max PV Input Current / Input Power | 18A / 5000W |
| MPPT Range @ Operating Voltage | 40~450 VDC |
| Max PV Open Circuit Voltage | 500 VDC |
| Max PV Charge Current | 100 A |
| Max AC Charge Current | 100 A |
| Max Charge Current (PV + AC) | 100 A |
| Battery Rated Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 30.5 VDC |
| Battery Type | Lithium and Lead-acid |
| HMI | LCD |
| Interface | RS485 / RS232 / USB / Dry Contact |
| Monitoring | WiFi (Optional) |
| Ingress Protection | IP21 |
| Operating Temperature | -10°C ~ 50°C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C ~ 60°C |
| Net Weight | 6.4 kg |
| Dimensions (W × H × D) | 490 × 306 × 115 mm (without bracket) |
| Max. Operating Altitude | 4000 m (Derating above 1000 m) |
