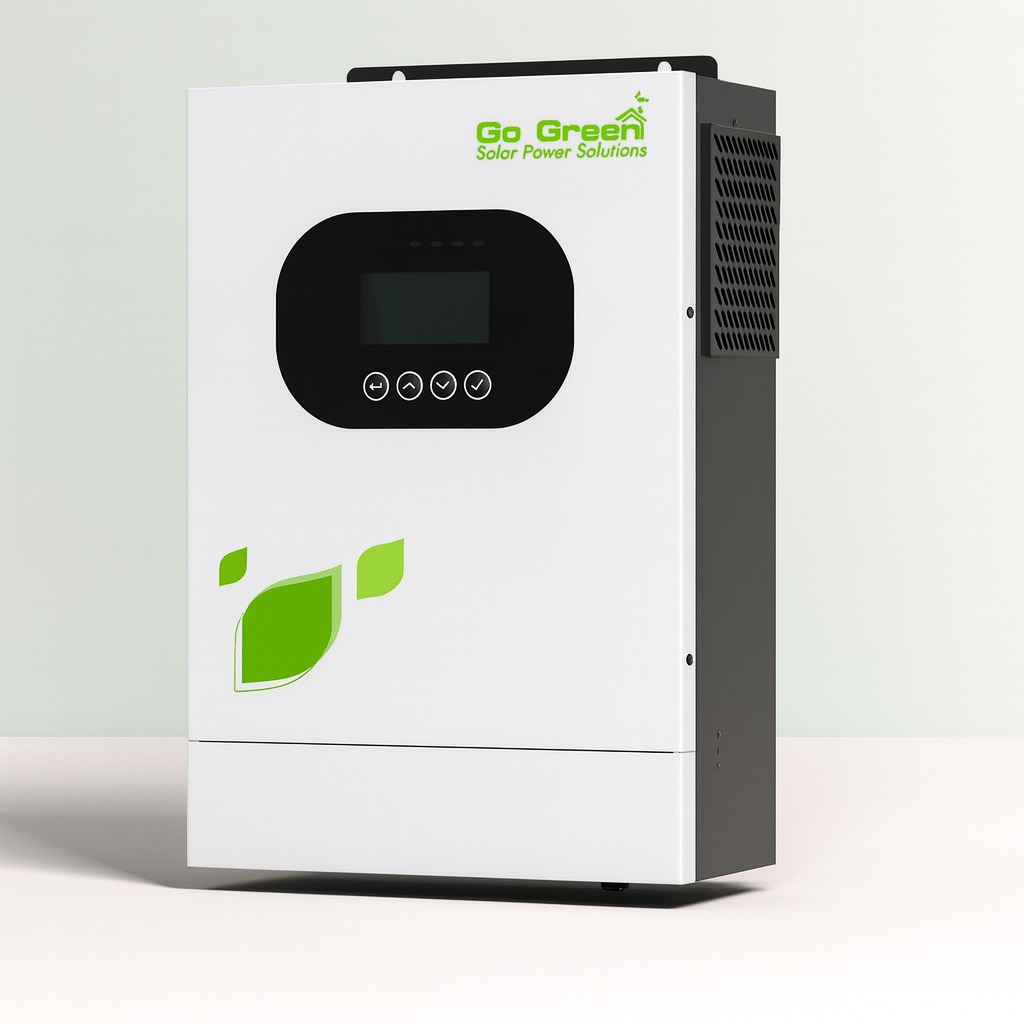

GGIV 2000 Single Phase MPPT Inverter
Intelligent, high-performance MPPT inverter for single-phase solar setups with smooth backup transition and smart energy control.
GGIV 2000 Single Phase MPPT Inverter
Smart, efficient hybrid inverter for single-phase solar systems with seamless power backup and energy management.
Code
FHN7SW
Description
GGIV 2000
Category
Single Phase Hybrid Inverter
| Category | Specification |
|---|---|
| Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90~280±3 (normal); 170~280±3 (UPS) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| Rated Capacity (kVA) | 2.0 |
| Peak Power (kVA) | 2.4 |
| Output Voltage (VAC) | 208 / 220 / 230 / 240 |
| Power Factor | 1 |
| Output Frequency | 50/60Hz ± 0.1% |
| Switch Time (ms) | 10 (normal/UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity (Battery Mode) |
60s @ 102–110% load 10s @ 110–130% load 3s @ 130–150% load 0.2s @ >150% load |
| Max Efficiency (Battery) | 90%@12VDC |
| Parallel Quantity | N/A |
| Solar Charger Type | MPPT |
| Max PV Input Current / Power | 14A / 1000W |
| MPPT Operating Range | 20~100 VDC |
| Max PV Open Circuit Voltage | 125 VDC |
| Max PV Charge Current | 60A |
| Max AC Charge Current | 40A |
| Max Charge Current (PV + AC) | 100A |
| Battery Voltage | 12 VDC |
| Floating Charge Voltage | 13.8 VDC |
| Overcharge Protection | 15 VDC |
| Battery Type | Lithium and Lead-acid |
| HMI | LCD |
| Interface | RS485 / USB |
| Monitoring | N/A |
| Ingress Protection | IP20 |
| Operating Temperature | -10°C ~ 50°C |
| Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C ~ 60°C |
| Net Weight | 3.6 kg |
| Dimensions | 330 × 226 × 92 mm (without bracket) |
| Max Operating Altitude | 4000 m (Derating above 1000 m) |
The GGIV 2000 is a high-performance MPPT inverter designed for single-phase solar power systems. It seamlessly integrates solar energy, and battery storage to ensure uninterrupted energy supply for homes and small businesses.
With intelligent energy management, fast MPPT tracking, and advanced safety features, it maximizes energy efficiency while reducing dependency on off grid. Its compact design, easy installation, and user-friendly interface make it ideal for both new and existing solar setups.
