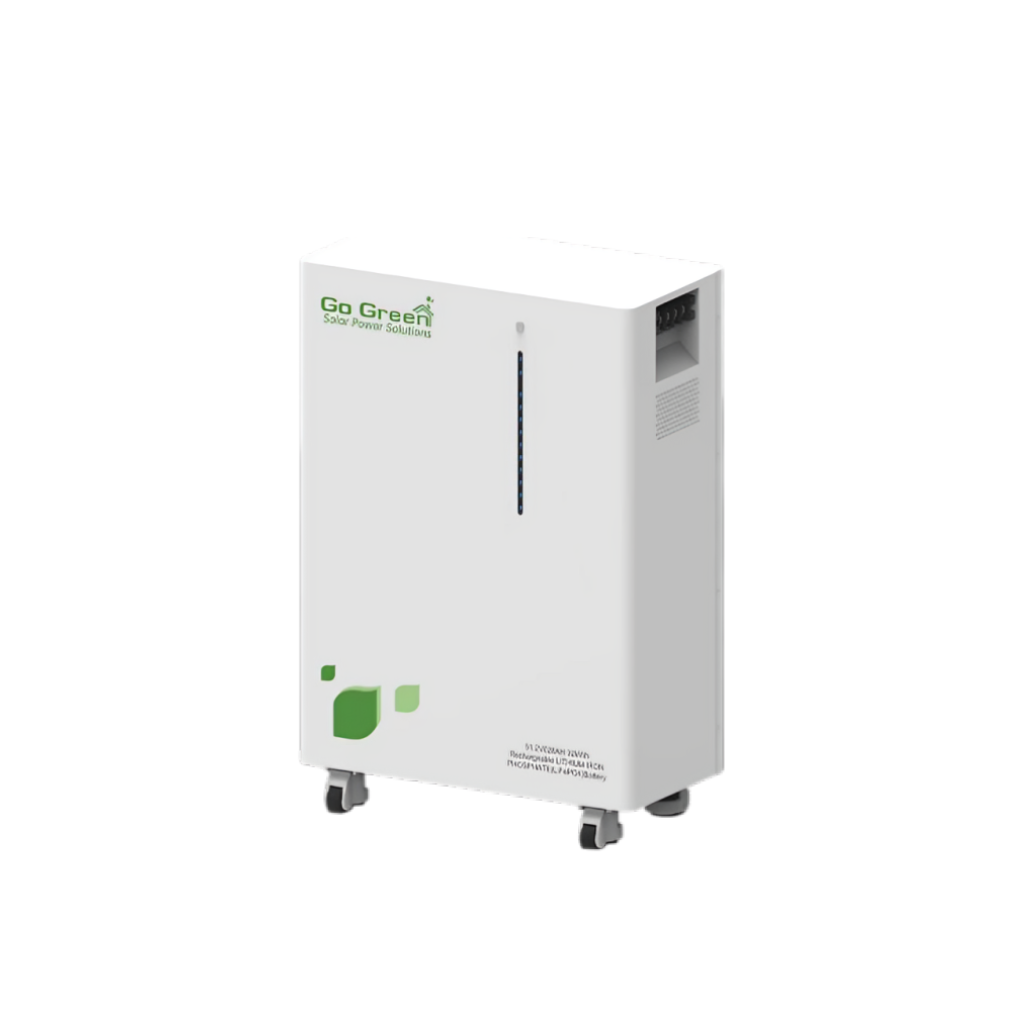

GGESS-32KWH 51.2V 628AH LiFePO4 Battery Energy Storage System
Ensures reliable performance by preventing damage from over-discharge, overcharge, short circuits, and extreme temperatures.
GGESS-32KWH 51.2V 628AH LiFePO4 Battery Energy Storage System
Advanced safety features safeguard the battery’s life, stability, and efficiency under all operating conditions.
Code
GGISSL-140W
Capacity
1738×434×263mm
Category
Solar Street Light
| Category | Specification |
|---|---|
| Energy Capacity | 51.2V 628AH |
| Cell Specifications | LiFePO4 |
| Cell Configuration | 16S2P |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 43.2V |
| Optimum Charge Current | 150A |
| Max Continuous Discharge Current | 200A |
| Battery Management System | Overvoltage protection, undervoltage protection, over temperature protection, over-current protection, short circuit protection, balancing function, low battery latch function, etc |
| Operating Temperature | Charge Temperature: 0~60°C Discharge Temperature: -20~60°C |
| Cycle Life | >6000 Cycles |
| Warranty | 5 years |
| Dimension (W,D,H) | L680*W270*H710MM |
| Net Weight | / |
| Communication Interface | RS485, RS232, CAN, UART |
| Protection Level | IP20 |
| Dual Inline-Pin | Up to 6 batteries can be connected in parallel |
The GGESS-32KWH battery is equipped with advanced protection features to ensure long-lasting performance and safety. It prevents over-discharge and overcharge, safeguarding the battery from premature wear. Built-in short circuit protection enhances operational reliability, while temperature control ensures stable performance in varying environmental conditions. Together, these protections guarantee optimal efficiency and extended battery life.
